Marble quarries Diamond Wire Saw
TAG：Diamond Wire for Marble QuarryINFORMATION

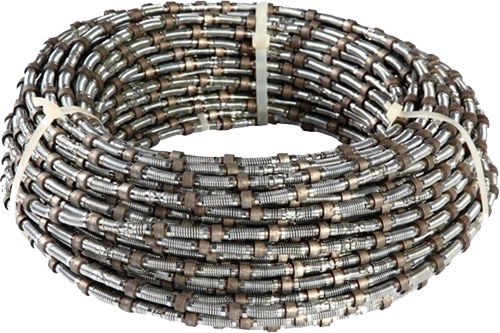

Diamond Wires for Marble quarries
Specification and Performance parameters:
|
Model |
Specification(mm) |
Beads/m |
Fixed by |
|
SSM11.5R40 |
Φ11.5 mm |
40 |
Rubber |
|
SSM11.0R40 |
Φ11.0 mm |
40 |
Rubber |
|
SSM11.0S28 |
Φ11.0 mm |
28 |
Spring |
|
SSM10.5R40 |
Φ10.5 mm |
40 |
Rubber |
|
SSM10.5R38 |
Φ10.5 mm |
38 |
Rubber |
The main technical data and cutting performance are:
|
Cutting Material |
Line speed (m/s) |
Cutting speed(㎡/h) |
Wire life (㎡/m) |
|
Low rigidity Marble |
35-40 |
9-12 |
40-70 |
|
Mid-rigidity Marble |
32-35 |
7-10 |
25-45 |
|
Hard Marble |
28-32 |
4-8 |
20-30 |
Note : Dry cutting diamond wires for marble quarries are available.
